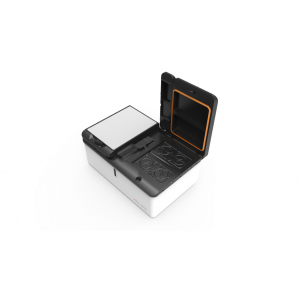

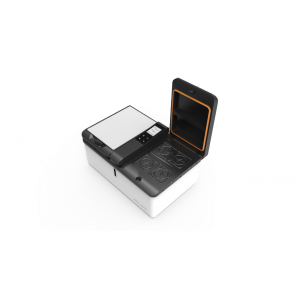

DCK MINI

$0.00

SKU: DCK MINI

Product Code: DCK MINI

Availability: Pre-Order

Technical Specifications	Performance Indicators

Dish Capacity

: 8 four-well culture dishes / 8 single-well round culture dishes (60 mm) / 20 single-well round culture dishes (35 mm)

Altitude

: ≤ 2000m

Power Supply:

AC 220V, 50Hz

Rated Power

:120VA

Operating Ambient Temperature

: The set control temperature should be at least 5°C higher than the ambient temperature.

Operating Ambient Humidity

: Relative humidity: 5% to 90%, non-condensing gas

Gas

: Premixed gas

Temperature Control Range

: +22.0°C to +42.0°C

Temperature Control Accuracy:

±0.1°C (when temperature is set to 37.0°C; for other set ranges, control accuracy is ±0.2°C)

Temperature Fluctuation Range:

±0.1°C (when temperature is set to 37.0°C; for other set ranges, control fluctuation is ±0.2°C)

Internal Temperature Uniformity:

＜±0.2°C (when temperature is set to 37.0°C)

Temperature Recovery Time:

60 seconds

Flow Rate Control Range:

+15 mL/min to 35 mL/min (adjustable in 5 mL/min increments)

Flow Rate Control Accuracy:

±2 mL/min

Flow Rate Fluctuation Range:

±4 mL/min

Recovery (Flushing) Flow Rate

: 170 mL/min to 190 mL/min per chamber

Humidification Performance:

≥75%

Humidity Recovery Time:

≤4h

Water Level Monitoring

: Software alert when 7 days of water remaining / Software alert when 3 days of water remaining

External Dimensions:

42cm × 27.5cm × 19cm (W × D × H)

Instrument Weight:

17.9KG

Battery:

1.5–2h

Weight: 17.9 (kg)

Size: 42 * 27.5 * 19 (cm)
